PRO-SET by CPS
TR-600 / Recovery Machine

CPS Products - The Pro-Set TRS600 designed to be lightweight, efficient and reliable refrigerant recovery machine. The TRS600 offers the ideal combination of form and function to make refrigerant recovery fast and easy for your everyday HVAC tech.

  • Design research

  • Complete Industrial design solutions

  • Dynamic product styling

  • Modular feature development

  • Design for manufacturing

  • Parametric 3D engineering

  • Product animations

  • Product launch

Inspired by automotive design, we reimagined the CPS/PRO-SET TR-600 HVAC recovery machine, transforming it from an often-overlooked tool into a piece of equipment that professional technicians can truly appreciate.

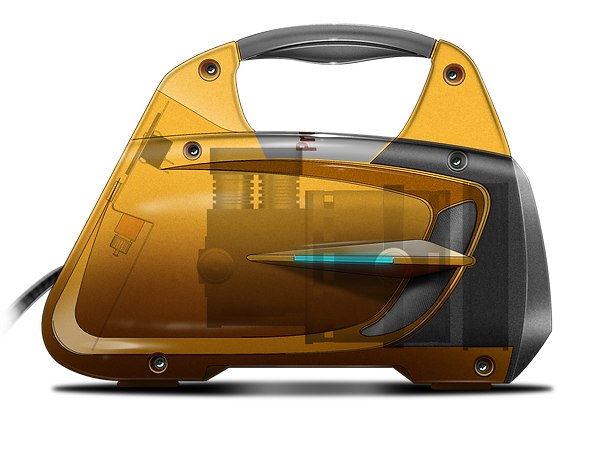

design 3 rough concept copy.png

Extensive industrial design processes were unitized for design evolution development.

3D cad was derived directly from concepts.

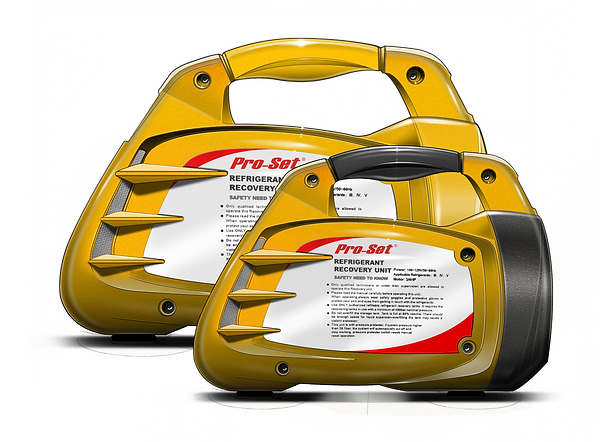

Appion killer revised copy.png

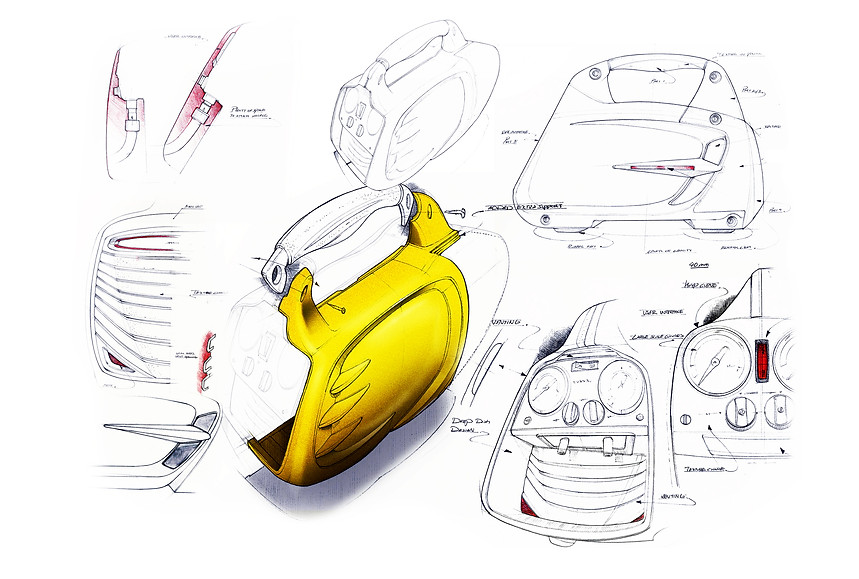

3 copy.jpg

TR-600 / 3D Cad / Development

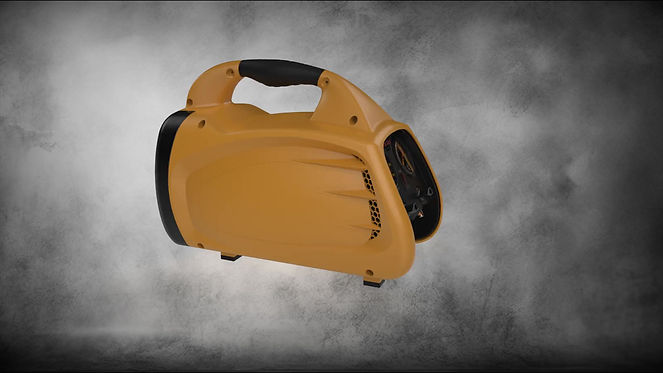

final rendering 2.png

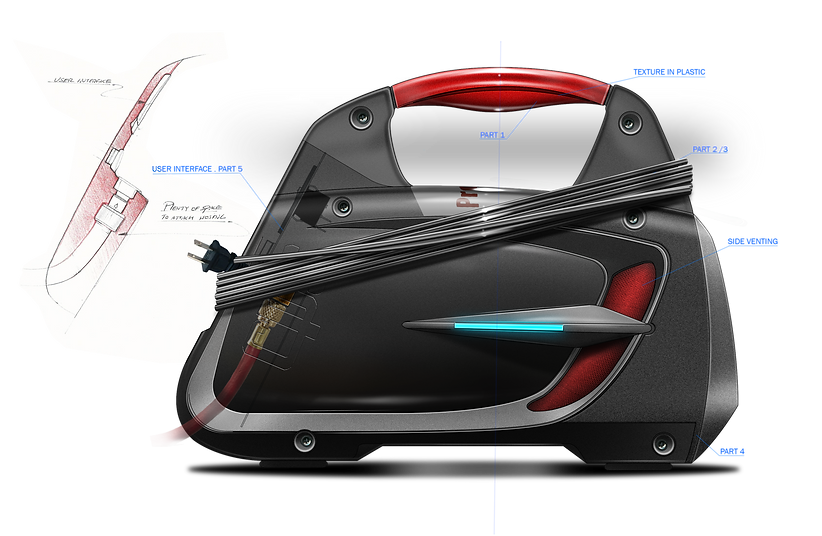

design 2 rough concept copy.png

We utilized advanced parametric 3D modeling and surfacing techniques to develop production-ready CAD files.

​

  • DFM practices

  • Surface Modeling

  • Multi-body assemblies

  • Engineering Product Spec Drawings

​

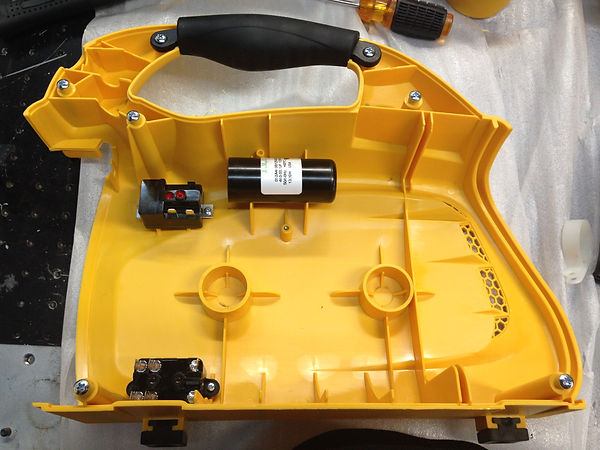

internal plastic.png

Production Manufacturing


We collaborated with our Asian injection molding partners and sub-assembly vendors to produce components ready for assembly in the United States.

During the design phase we handled continuous modifications throughout the development process, leveraging 3D printing technology to prove out design modifications

Pressure switch.jpg

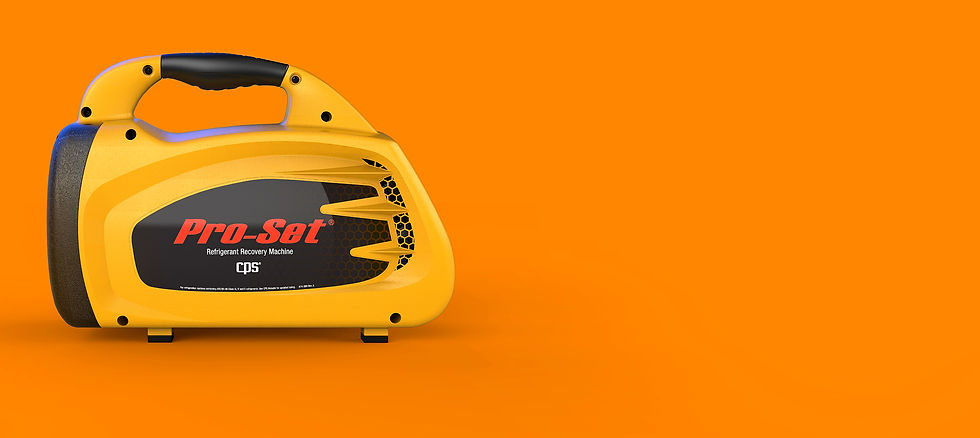

final part TR-600.jpg
final part TR-600 2.jpg
